CS-175
COUPLER COVER
| Part No. | CS-175 |
|---|
Details

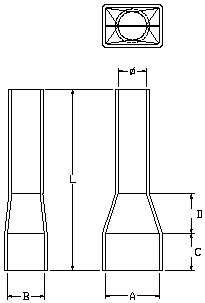

| Item No | A | B | C | D | dφ | L ± 2.0 | L ± 0.2 | Packing units |
| CS090 | 9.0 | 7.3 | 13.0 | 2.0 | 2.7 | 23.0 | 1.0 | 1000 pcs |
| CS130 | 13.0 | 6.0 | 13.0 | 8.0 | 6.0 | 47.0 | 1.5 | 500 pcs |
| CS131 | 13.0 | 13.0 | 24.0 | 10.0 | 5.0 | 51.0 | 1.1 | 1000 pcs |
| CS146 | 14.5 | 12.0 | 25.0 | 6.0 | 11.0 | 51.0 | 1.2 | 1000 pcs |
| CS156 | 15.6 | 6.5 | 16.5 | 14.5 | 6.1 | 45.0 | 1.2 | 1000 pcs |
| CS160 | 16.0 | 16.0 | 26.0 | 10.0 | 8.0 | 62.0 | 1.2 | 200 pcs |
| CS170 | 17.0 | 17.0 | 27.0 | 7.0 | 9.0 | 65.0 | 1.2 | 200 pcs |
| CS174 | 17.0 | 4.8 | 7.5 | 3.5 | 2.7 | 15.0 | 0.8 | 200 pcs |
| CS175 | 17.5 | 17.5 | 36.0 | 8.0 | 6.3 | 56.0 | 1.2 | 200 pcs |
| CS190 | 19.0 | 13.0 | 13.0 | 14.0 | 10.0 | 64.0 | 1.5 | 200 pcs |
| CS192 | 19.2 | 11.2 | 12.5 | 8.0 | 4.9 | 41.0 | 1.2 | 200 pcs |
| CS194 | 19.4 | 7.6 | 17.6 | 7.4 | 10.3 | 40.0 | 1.2 | 200 pcs |
| CS200 | 20.0 | 5.5 | 15.0 | 4.0 | 12.0 | 44.0 | 1.2 | 200 pcs |
| CS211 | 21.0 | 14.5 | 31.0 | 13.0 | 5.5 | 70.0 | 1.0 | 200 pcs |
| CS214 | 21.5 | 16.0 | 22.0 | 5.0 | 4.1 | 43.0 | 1.2 | 200 pcs |
| CS216 | 21.6 | 7.6 | 18.6 | 11.4 | 6.4 | 50.0 | 1.2 | 200 pcs |
| CS220 | 22.0 | 22.0 | 47.0 | 8.5 | 11.6 | 75.0 | 1.5 | 500 pcs |
| CS221 | 22.0 | 18.5 | 48.0 | 10.0 | 8.0 | 73.0 | 1.2 | 200 pcs |
| CS223 | 22.0 | 16.0 | 20.0 | 7.0 | 12.0 | 47.0 | 1.2 | 200 pcs |
| CS225 | 22.5 | 11.0 | 16.0 | 21.0 | 6.0 | 44.0 | 1.1 | 200 pcs |
| CS226 | 22.0 | 6.0 | 16.0 | 6.0 | 7.2 | 48.0 | 1.1 | 500 pcs |
| CS253 | 25.3 | 19.1 | 30.0 | 14.0 | 10.0 | 51.0 | 1.7 | 500 pcs |
| CS256 | 25.0 | 7.5 | 6.0 | 22.5 | 6.0 | 40.0 | 1.5 | 500 pcs |
| CS278 | 27.2 | 8.9 | 20.0 | 20.0 | 8.0 | 50.0 | 1.2 | 200 pcs |
| CS280 | 28.0 | 27.0 | 30.0 | 13.0 | 11.0 | 60.0 | 1.2 | 200 pcs |
| CS290 | 29.0 | 13.0 | 15.0 | 13.0 | 10.0 | 62.0 | 1.5 | 200 pcs |
| CS292 | 29.0 | 22.0 | 38.0 | 7.0 | 13.0 | 75.0 | 1.2 | 200 pcs |
| CS295 | 29.5 | 14.0 | 14.0 | 14.0 | 11.0 | 64.0 | 1.2 | 200 pcs |
| CS297 | 29.0 | 7.8 | 21.0 | 3.0 | 7.2 | 39.0 | 1.2 | 500 pcs |
| CS300 | 30.0 | 15.0 | 38.0 | 7.0 | 9.0 | 70.0 | 1.2 | 200 pcs |
| CS302 | 30.0 | 22.0 | 25.0 | 10.0 | 9.0 | 55.0 | 1.2 | 200 pcs |
| CS322 | 32.0 | 24.0 | 35.0 | 10.0 | 9.0 | 65.0 | 1.2 | 200 pcs |
| CS323 | 32.0 | 30.0 | 35.0 | 16.0 | 11.5 | 71.0 | 1.2 | 200 pcs |
| CS335 | 33.5 | 22.0 | 37.0 | 10.0 | 9.0 | 75.0 | 1.0 | 100 pcs |
| CS344 | 34.5 | 22.5 | 23.0 | 9.0 | 4.0 | 47.0 | 1.5 | 200 pcs |
| CS355 | 35.5 | 19.5 | 42.0 | 15.5 | 9.0 | 72.0 | 1.5 | 100 pcs |
| CS380 | 38.0 | 12.0 | 15.0 | 15.0 | 13.0 | 65.0 | 1.5 | 200 pcs |
| CS385 | 38.0 | 28.5 | 35.0 | 10.0 | 5.0 | 58.0 | 1.0 | 200 pcs |
| CS400 | 39.0 | 29.0 | 20.0 | 20.0 | 10.0 | 64.0 | 1.0 | 100 pcs |
| CS420 | 42.0 | 22.0 | 44.0 | 8.0 | 13.0 | 81.0 | 1.4 | 100 pcs |
| CS500 | 51.0 | 25.4 | 30.0 | 10.0 | 16.0 | 65.0 | 1.0 | 100 pcs |
| CS510 | 51.0 | 2.0 | 27.0 | 23.0 | 11.0 | 69.0 | 1.5 | 200 pcs |
| *Standard colors : Black | ||||||||
